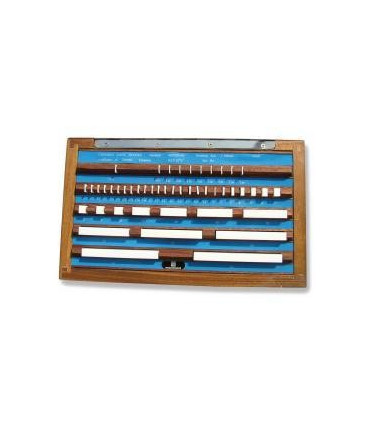

SET OF GAUGE BLOCKS IN CERAMIC ZIRCON 607 / 608
Set of exceptionally pure ceramic zircon parallel gauge blocks. The physical and mechanical properties of ceramic zircon offer the following advantages: an expansion coefficient similar to the steel; high thermal stability; high resistance to abrasion and wear; resistance to corrosion; good cohesion capacity; mechanical resistance with values similar to steel. Serial number on each block. Manufactured as per UNI EN ISO 3650. Supplied in case. Available at grade 0 and 1.
Reference:
ART.0607 / 0608
