Flat plug gauges in “Go-No Go” pairs.Rigid body in stabilised special steel.The calibrating sections are case-hardened and tempered.
From ø 110 to ø 204 mm.
ART.0905 - SET OF CYLINDRICAL PINS CALIBRATED

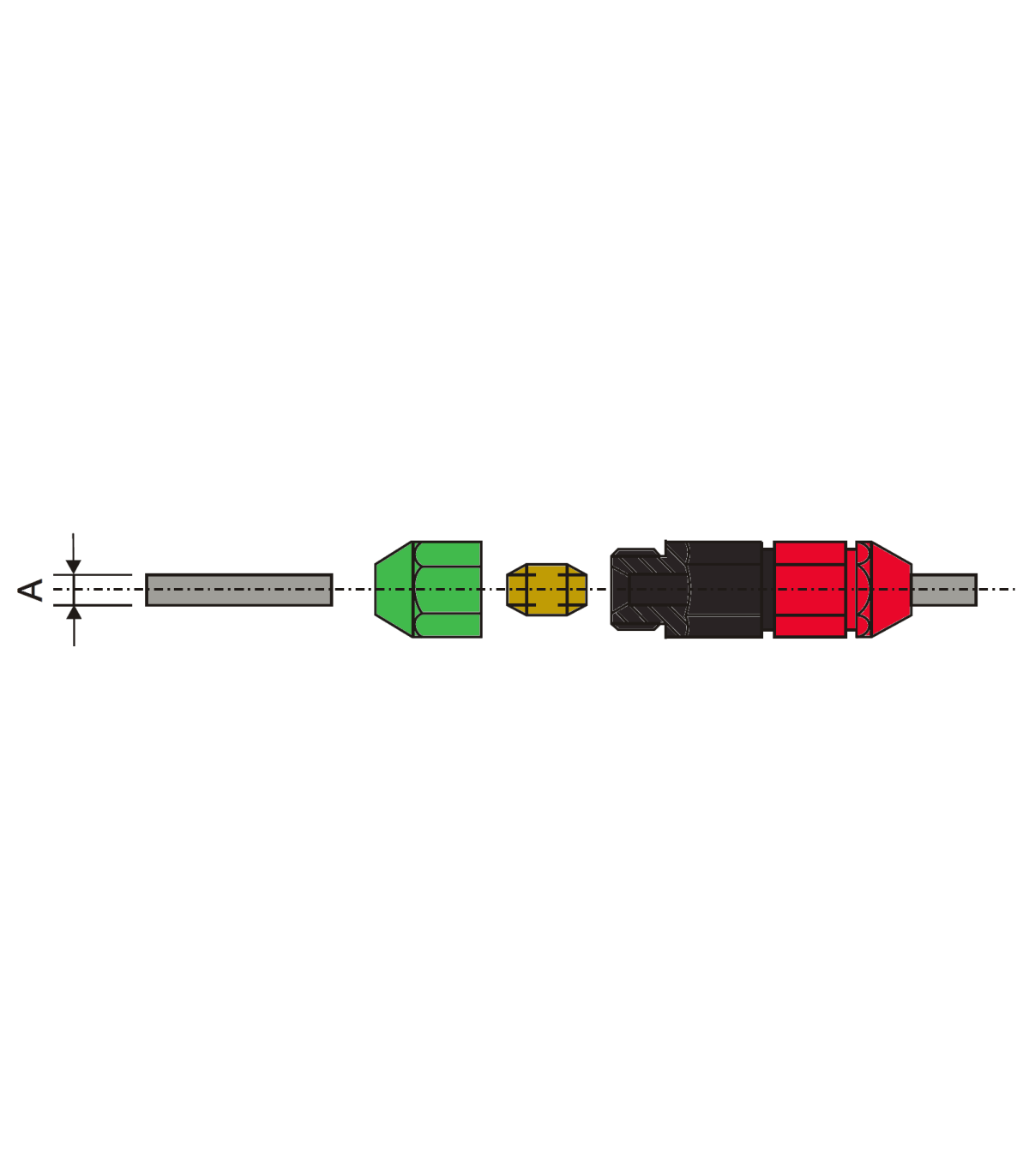

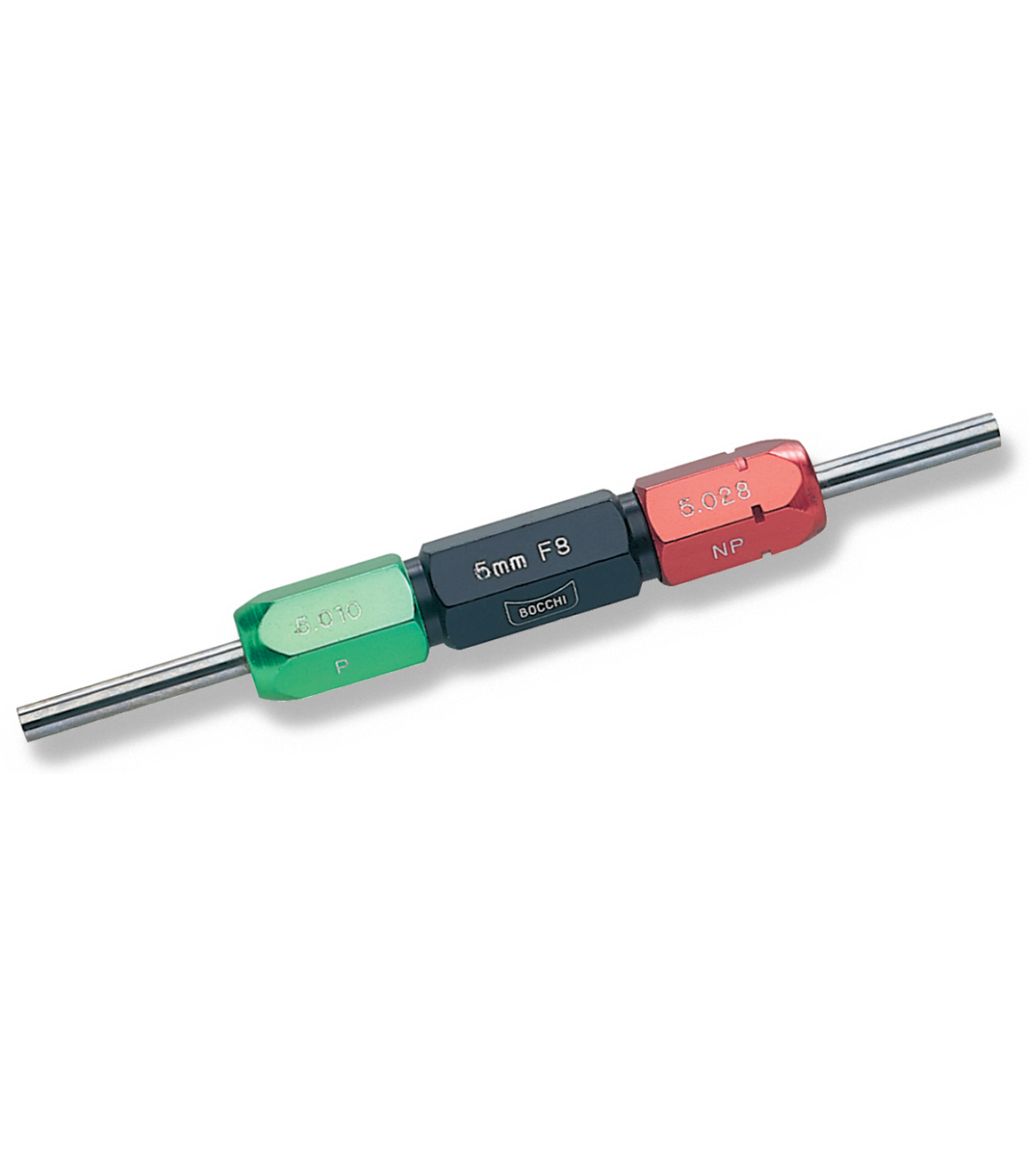

These reversible type plug gauges, due to their modular composition, last twice as long as the normal plug gagues, since their calibrated parts can be inverted in case of wear.
Furthermore, it is possible to set the desidered projections both on the "GO" and on the "NOGO" sides.
Larger size are supplied on request.
Furthermore, it is possible to set the desidered projections both on the "GO" and on the "NOGO" sides.
Larger size are supplied on request.
From ø 0,20 to ø 19,45 mm.
Reference:
ART.0905
