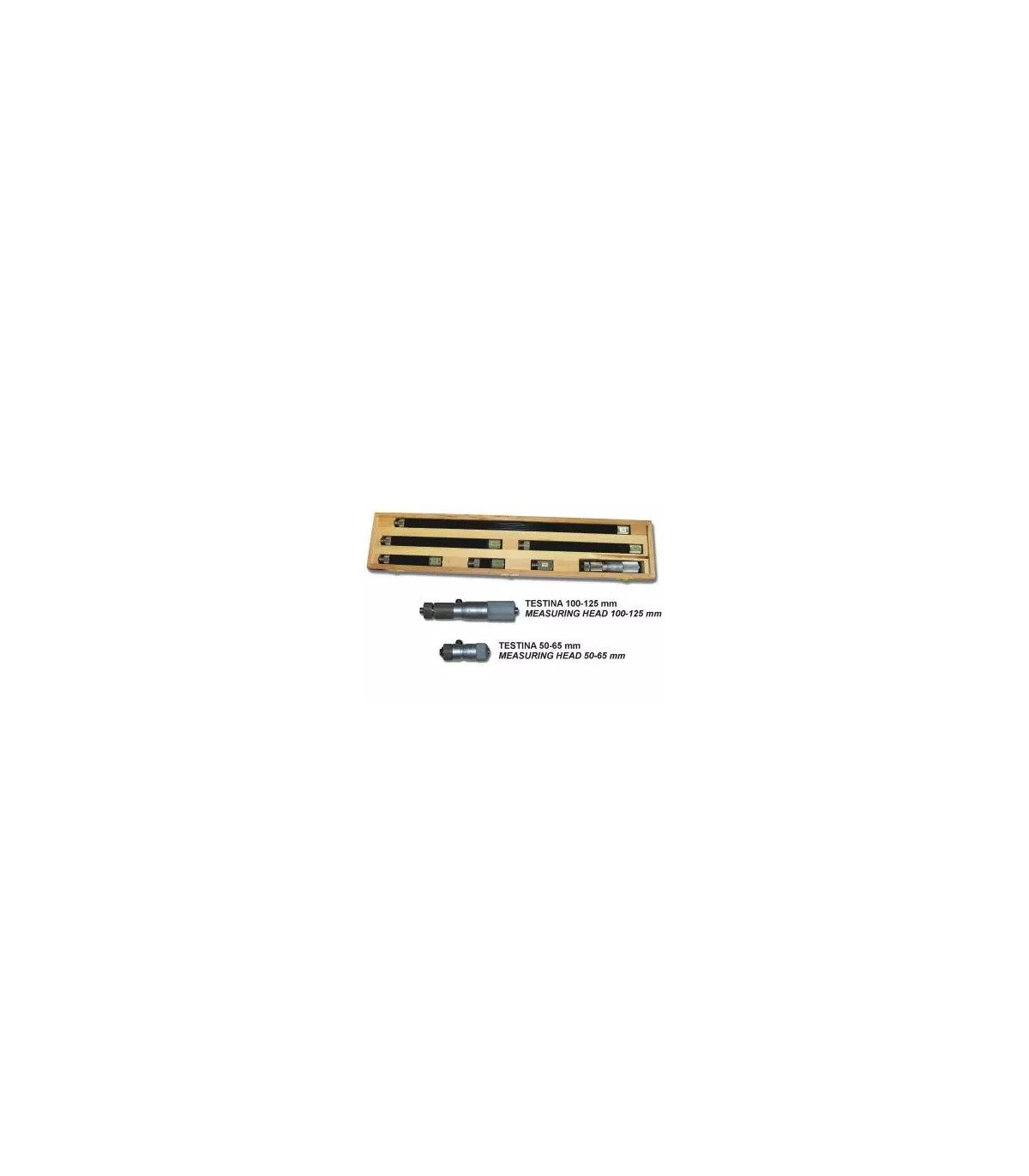

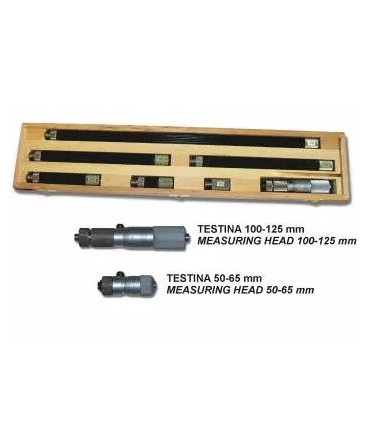

ART.0192 - HIGH QUALITY/ACCURACY INSIDE MICROMETER WITH EXTENSION RODS
High quality/accuracy inside micrometer with extension rods.
Extension rods and measuring head in hardened and ground stainless steel with specific working systems to assure the max accuracy and min bending.
Covered with heat-insulated material.
Measuring head (ø 19 mm) chromed and etched by laser for a clear and long lasting.
Locking screw.
Extension rods ø 16,5 mm with carbide contacts.
Serial number.
Manufactured as per DIN 863.
Supplied in a box.
Reference:
ART.0192
|
CODE
|
READING
(mm)
|
1 ROUND OF THE TIMBLE
(mm)
|
MEASURING HEAD
(mm)
|
RANGE
(mm)
|
EXTENSION
(mm)
|
|
01
|
0,01
|
0,05
|
50-65
|
50-150
|
15/25/50
|
|
02
|
0,01
|
0,05
|
50-65
|
50-450
|
15/25/50/100/200
|
|
03
|
0,01
|
0,05
|
50-65
|
50-850
|
15/25/50/100/200/400
|
|
04
|
0,01
|
0,05
|
100-125
|
100-1100
|
25/50/100/200/200/400
|
|
05
|
PROLUNGA 15 mm
|
||||
|
06
|
PROLUNGA 25 mm
|
||||
|
07
|
PROLUNGA 50 mm
|
||||
|
08
|
PROLUNGA 100 mm
|
||||
|
09
|
PROLUNGA 200 mm
|
||||
|
10
|
PROLUNGA 400 mm
|
||||
|
11
|
PROLUNGA 1000 mm x ø 30 mm
|
