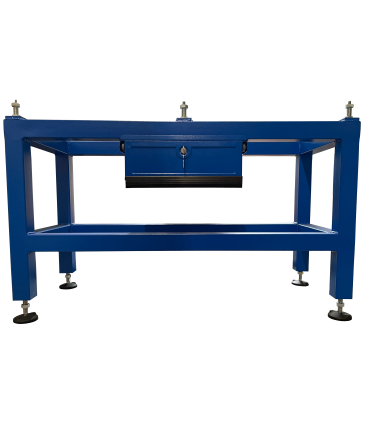

ART.0582 - SUPPORT TABLE
Support table in painted steel for surface plates in cast iron and granite.
Provided with adjustment feet and anti-vibration supports.
Supplied with drawers.
Reference:
ART.0582
